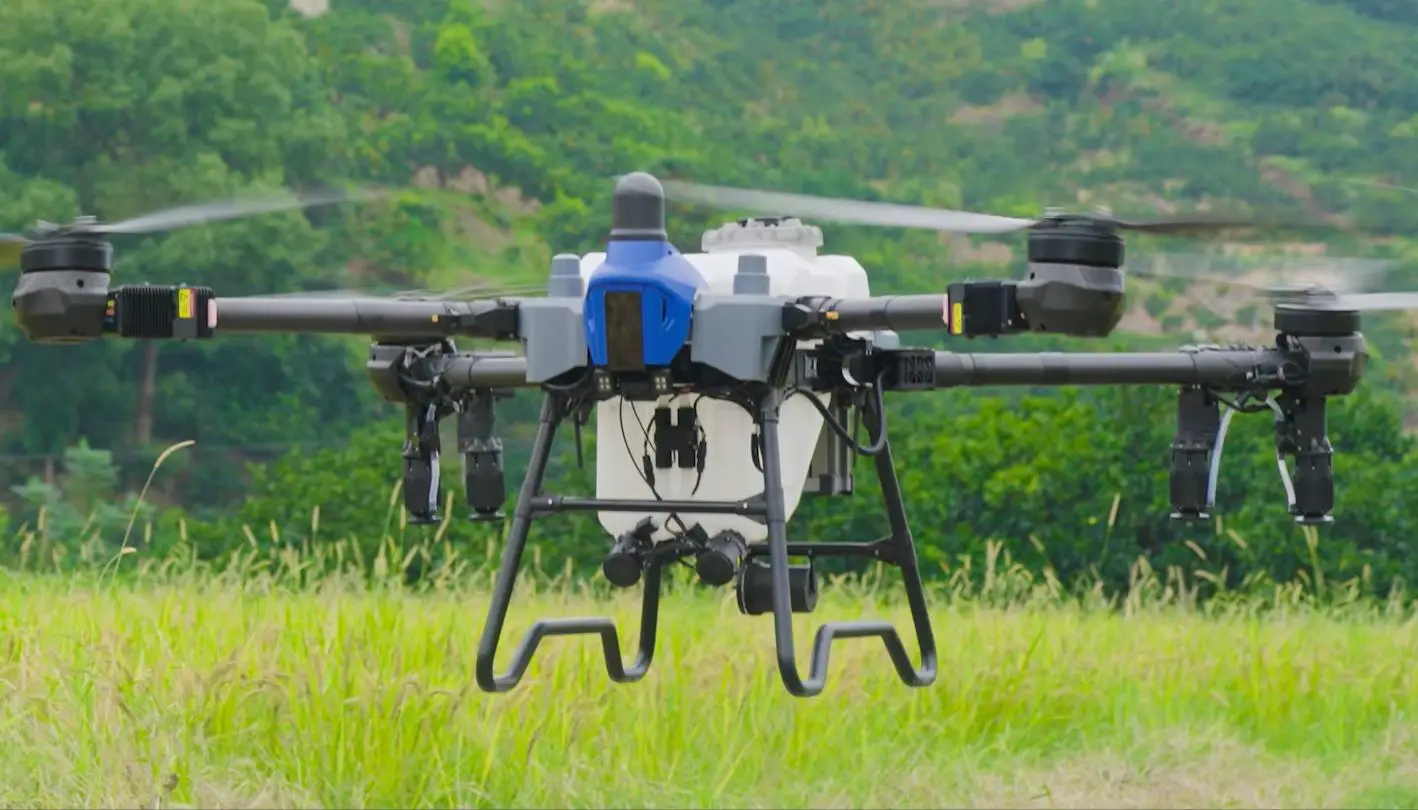

EAvision J150 Agricultural Drone
EAvision Australia
J150 Drone for Spraying, Spreading, Lifting and Mapping.
The EAvision J150 brings new capability for large agricultural operators that require additional capacity to manage larger spraying and spreading requirements and/or increased application rates. With a maximum take-off weight of 149kg this large drone will meet the needs of operators who have the capability to manage and, at the same time take advantage of the ability of this large spray drone. With a 70L spray capacity or 100L spreader capacity, the J150 provides a cost-effective option to broadacre requirements.
The J150 is the second in the “J” series of drones from EAvision and follows the successful J100. Many successful features have been incorporated and improved in the J150. In addition, new features have been added to the J150 that complement its larger capacity. EAvision’s demonstrated commitment to build quality in all EAvision Drones and the J150 is no exception. All major components are developed in-house and subject to a strict quality control process throughout every stage in the build process.
J150 Improved Performance
To achieve increased lifting ability, the J150 comes with both larger motors and 63-inch propellers. Power output is rated at 10 grams per watt or 73 kg per motor. Overall performance retains the EAvision standard of 2 x Power to weight ratio.
New ECS/Motor interface and performance balancing software. Providing continuous, secure power efficiently and controlled to minimise heat build-up
Fusion Perception System
Advanced, automobile-grade, obstacle detection system. The J150 combines five advanced sensing modules to create a 360° terrain and obstacle environment, ensuring safe and efficient operation. Duel Forward LiDar, Dual Phased Array radar, and a 360 ° Millimetre Wave Radar provide sensing capability day and night. The Phased radar array also provides detection capability during dusty and/or foggy conditions.
Fish-eye FPV system
The J150 Fish-Eye fixed FPV camera offers a 160° field of view in both horizontal and vertical planes. The digital gymble provides a clear view of the operating environment with fewer moving parts, resulting in an increased overall reliability of the system.
The high-spec camera paired with the high transmission rate of the controller results in a better view with low latency.
CCMS Spray System
The J150 retains the rear four-nozzle layout that has been a proven success with the J100. The version 6 nozzles increase the max flow to 40lt/min when the four nozzles are in use. The current nozzle disc configuration has a droplet size range of 10 – 420 micron. Suitable for most spray applications.
New to the J150 is the option to mix droplet sizes for each nozzle pair. This feature has been especially developed to meet the needs of orchid-type applications to further improve canopy penetration with both misting and larger droplet sizes in the one application.
New Auger – Spinner combination spreader
The J150 Spreader has a capacity of 100lts or 70kg uplift. The new combination of Auger and Spinner allows for smooth and constant product delivery with minimal blockages. The Auger design is compatible with both wet and dry fertilisers.
With a max flow rate of 280kg/min and an 8m swath, the spreading efficiency is greatly improved when combined with the maximum flight speed.
CTB Smart Battery
The J150 Smart battery maintains the same advanced modular design that has been successful with the J100. Already proving itself with superior performance, especially in hot environments and continual use.
Combined with a 13,000 charger, the battery with its increased capacity of 45Ah provides long flight times and fast charging. Continuous operation with only 2 batteries is possible, even in our hot summer conditions.
The battery has many advanced features to improve both battery performance and self protection.
